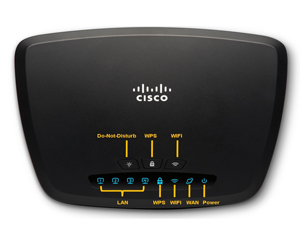

• When this button is turned on, all lights on the front panel are off and the Do-Not-Disturb indication light on the back panel is solid green.
• When this button is turned off, all lights on the front panel are on and the Do-Not-Disturb indication light on the back panel is off.

• Operating temperature: 0° to 40°C (32°to 104°F)
• Storage temperature: -30° to 60°C (-22° to 140°F)
• Operating humidity: 10% to 85% noncondensing
• Storage humidity: 5% to 95% noncondensing

• Static routing
• Routing Information Protocol (RIP) versions 1 and 2
• Inter-VLAN routing

• 802.1Q-based VLAN
• 6 active VLANs (VLAN ID Range: 4 to 4094)

• Dynamic Host Configuration Protocol (DHCP) Server
• Point-to-Point Protocol over Ethernet (PPPoE)
• Point-to-Point Tunneling Protocol (PPTP) pass-through
• Layer 2 Tunneling Protocol (L2TP) pass-through
• DHCP relay agent
• IGMP proxy and snooping
• Dynamic Domain Name System (DynDNS): oray.com and 3322.org
• Network Access Translation (NAT) and Port Address Translation (PAT)
• Port management
• Port mirroring

• IPv4/IPv6 dual stacks
• IPv6 to IPv4 tunneling
• Multicast Listener Discovery (MLD) for IPv6 (RFC2710)
• Stateless address auto-configuration (SLAAC)
• DHCPv6 Server for LAN IPv6 clients
• DHCPv6 Client WAN connection
• Internet Control Message Protocol (ICMP) version 6
• IPv6 static routing
• RIP Next Generation (RIPng): IPv6 Dynamic Routing

• Stateful packet inspection (SPI) firewall
• Port forwarding and port triggering
• Access control lists (ACL) and content filtering
• DoS prevention
• Wireless MAC address filtering
• Static URL or keyword filtering
• Access control by schedule
• Web-based configuration utility (HTTP and HTTPS)
• Self-signed SSL certificateuting

• Up to 3 IPsec VPN tunnels by using the Cisco QuickVPN software
• PPTP, L2TP, and IPsec VPN passthrough
• 1 IPsec site-to-site tunnel

• 802.1p-based priority on LAN ports and application-based priority on WAN ports
• 4 queues
• Differentiated services code point (DSCP)
• Class of service (CoS))
• Bandwidth control

• Local logs, system logs, and remote logs
• Upgrade the firmware from the web-based device manager
• Import and export system configuration (.txt)
• Remote management using the HTTP or HTTPS protocol)
• Bonjour and Universal Plug and Play (UPnP)
• Network diagnostics: Ping, traceroute, and DNS lookup

• NAT throughput: 90 Mbps
• Maximum new connections: 750
• Maximum concurrent connections: 15,000
• VPN throughput: 5 Mbps

IEEE 802.11n wireless access point; complies with 802.11b/g

Wireless radio modes:

• 802.11b: Direct-Sequence Spread Spectrum (DSSS)
• 802.11g/n: Orthogonal Frequency-Division Multiplexing (OFDM)
• 2 built-in omnidirectional antennas with 1.8 dBi gain

Wireless channels:

• 13 selectable wireless channels
• Automatic channel selection

Transmit power:

• 802.11b: 17 dBm +/- 1.5 dBm
• 802.11g: 15 dBm +/- 1.5 dBm
• 802.11n: 12.5 dBm +/- 1.5 dBm

Receiver sensitivity:

• -87 dBm at 11 Mbps
• -71 dBm at 54 Mbps
• -68 dBm at msc15, HT20; -66dBm at mcs15, HT40

• Press the Wireless button to enable or disable the wireless module
• Adjustable Wi-Fi power: OFF, 50%, 100%

• Wi-Fi Protected Setup (WPS) 2.0
• Wired Equivalent Privacy (WEP)
• Wi-Fi Protocted Access (WPA)-Personal/Enterprise
• WPA2-Personal/Enterprise
