WS-C3850-48T-E

WS-C3850-48T-E

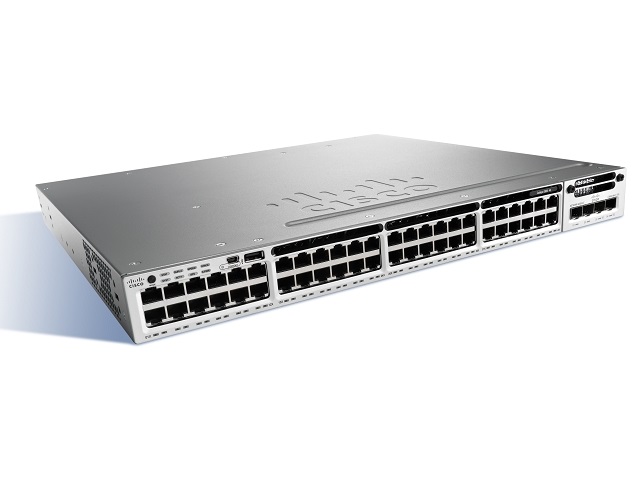

Thiết bị switch Cisco Catalyst C3850-48T Switch Layer 3 - 48 * 10/100/1000 Ethernet ports - IP service - managed- stackable / Advanced layer 3 routing features / Up to 9 members stacking and up to 480Gbps of stack throughput. / Up to 20G wireless bandwidth per switch, up to 50 APs and 2000 Wireless clients.

Mã sản phẩm: WS-C3850-48T-E
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Chi tiết

  • 48 x 10/100/1000 Ethernet ports.
  • Network SFP uplink module: C3850-NM-4-1G or C3850-NM-2-10G or C3850-NM-4-10G.
  • Dual redundant power module and three modular fans.
  • IP services Cisco IOS feature set with Flexible Netflow feature.
  • Advanced layer 3 routing features: OSPF, EIGRP, BGP, IS-IS, VRP-lite, PIM-DM, PIM-SM, PIM sparse-dense mode, SSM, IPv6 routing.
  • Up to 9 members stacking and up to 480Gbps of stack throughput.
  • Up to 20G wireless bandwidth per switch, up to 50 APs and 2000 Wireless clients for each switching entity.
  • Support Cisco Aironet 1040/1140/1260/1600/2600/3500/3600 series APs.
  • 4GB memory (DRAM) and 2GB flash.
Đặc tả kỹ thuật Thiết bị switch Cisco WS-C3850-48T-E Catalyst 3850 Switch
Part number WS-C3850-48T-E
Form Rack-mountable - 1U
Ports 48 x 10/100/1000
Network management Interface Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Switching Capacity 176Gbps
Maximum stacking number up to 9 switches with same IOS feature set in same series
Stack Bandwidth 480Gbps
Forwarding Performance 130.95Mpps
FNF (Flexible NetFlow)  entries 48,000 flows
Maximum VLANs IDs 4000
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack up to 50 access points
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 40Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules C3850-NM-4-1G: 4 x 1G uplinks network module
C3850-NM-4-10G: 4 x 10G uplinks network module
C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-350WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
