WS-C3850-12S-S - Sao Thiên Vương, Phân phối thiết bị mạng MikroTik, Ubiquiti Unifi

Trang nhất Sản phẩm Thiết bị mạng Thiết bị mạng Cisco Cisco Catalyst 3850 Series

Cisco Catalyst 3850 Series

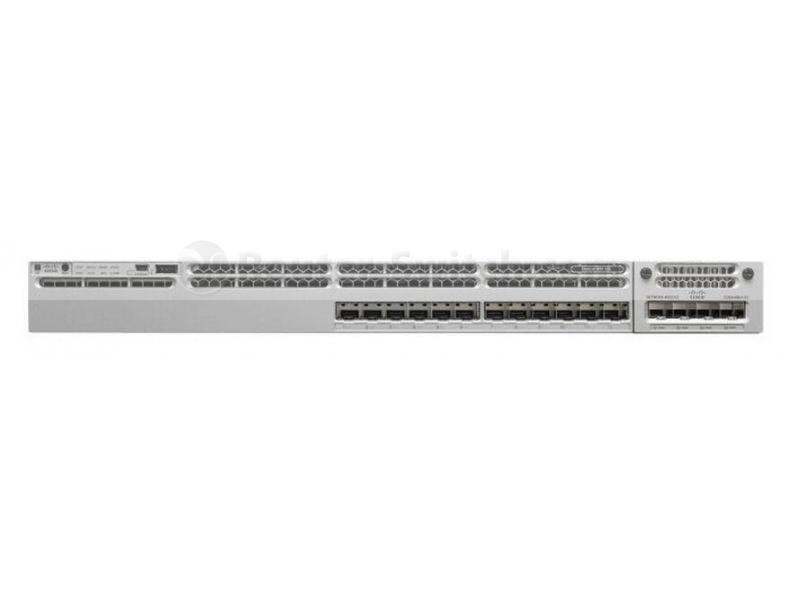

WS-C3850-12S-S

WS-C3850-12S-S

Thiết bị switch Cisco Catalyst C3850-12S Switch Layer 3 - 12 SFP - IP Base - Wireless controller - managed- stackable.

Mã sản phẩm: WS-C3850-12S-S
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Chi tiết

  • 12 ports of SFP Ethernet fiber connection with Flexible Netflow feature.
  • Network SFP uplink module selection: C3850-NM-4-1G OR C3850-NM-2-10G
  • Dual redundant power module and three modular fans
  • IP Base IOS image with update option to IP service (L-C3850-12-S-E)
  • Layer 3 routing features: OSPF stub, EIGRP stub, RIPv1, v2, PIM stub
  • Up to 9 members stacking and up to 480Gbps of stack throughputUp to 20G wireless bandwidth for each switch, up to 50 APs and 2000 Wireless clients for each switching entity
  • Support Cisco Aironet 1040/1140/1260/1600/2600/3500/3600 series APs
  • 4GB memory (DRAM) and 2GB flash
Đặc tả kỹ thuật thiết bị switch Cisco WS-C3850-12S-S
Cisco catalyst 3850-12S-S
P/N WS-C3850-12S-S
Form Rack-mountable - 1U
Ports 12 x SFP ports
Network management Interface Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Switching Capacity 68Gbps
Maximum stacking number 9
Stack Bandwidth 480Gbps
Forwarding Performance 68.4Mpps
FNF entries 48,000 flows
Maximum VLANs IDs 1000
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 50
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules C3850-NM-4-1G: 4 x 1G uplinks network module
C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-350WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
