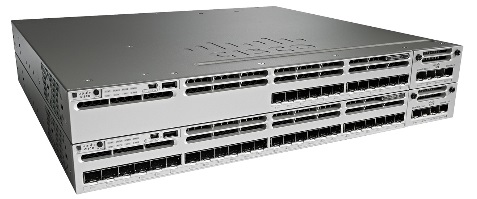

Thiết bị switch Cisco Catalyst C3850-24S Switch Layer 3 - 24 SFP - IP Base - managed- stackable.
Mã sản phẩm: WS-C3850-24S-S
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com
Cisco catalyst 3850-24S-S | |
P/N | WS-C3850-24S-S |
Form | Rack-mountable - 1U |
Ports | 24 x SFP ports |
Network management Interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
Management console port: RJ-45-to-DB9 cable for PC connections | |
Switching Capacity | 92Gbps |
Maximum stacking number | 9 |
Stack Bandwidth | 480Gbps |
Forwarding Performance | 68.4Mpps |
FNF entries | 48,000 flows |
Maximum VLANs IDs | 1000 |
MAC Address Table Size | 32K |
CPU | Multicore CPU |
RAM | 4 G |
Flash Memory | 2 G |
Wireless | |
Number of AP per switch/stack | 50 |
Number of wireless clients per switch/stack | 2000 |
Total number of WLANs per switch | 64 |
Wireless bandwidth per switch | up to 20Gbps |
Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
Expansion / Connectivity | |
Console ports | USB (Type-B), Ethernet (RJ-45) |
Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
Network Modules | C3850-NM-4-1G: 4 x 1G uplinks network module |
C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module | |
Stacking cable | STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
STACK-T1-1M StackWise stacking cable with a 1.0 m length | |
STACK-T1-3M StackWise stacking cable with a 3.0 m length | |
Stack Power Cable (recommended) | CAB-SPWR-30CM stack power cable with a 30CM length |
CAB-SPWR-150CM stack power cable with a 150CM length | |
Power supply | PWR-C1-350WAC |
Power Device | Power supply - redundant - plug-in module |
Power Redundancy | optional |
