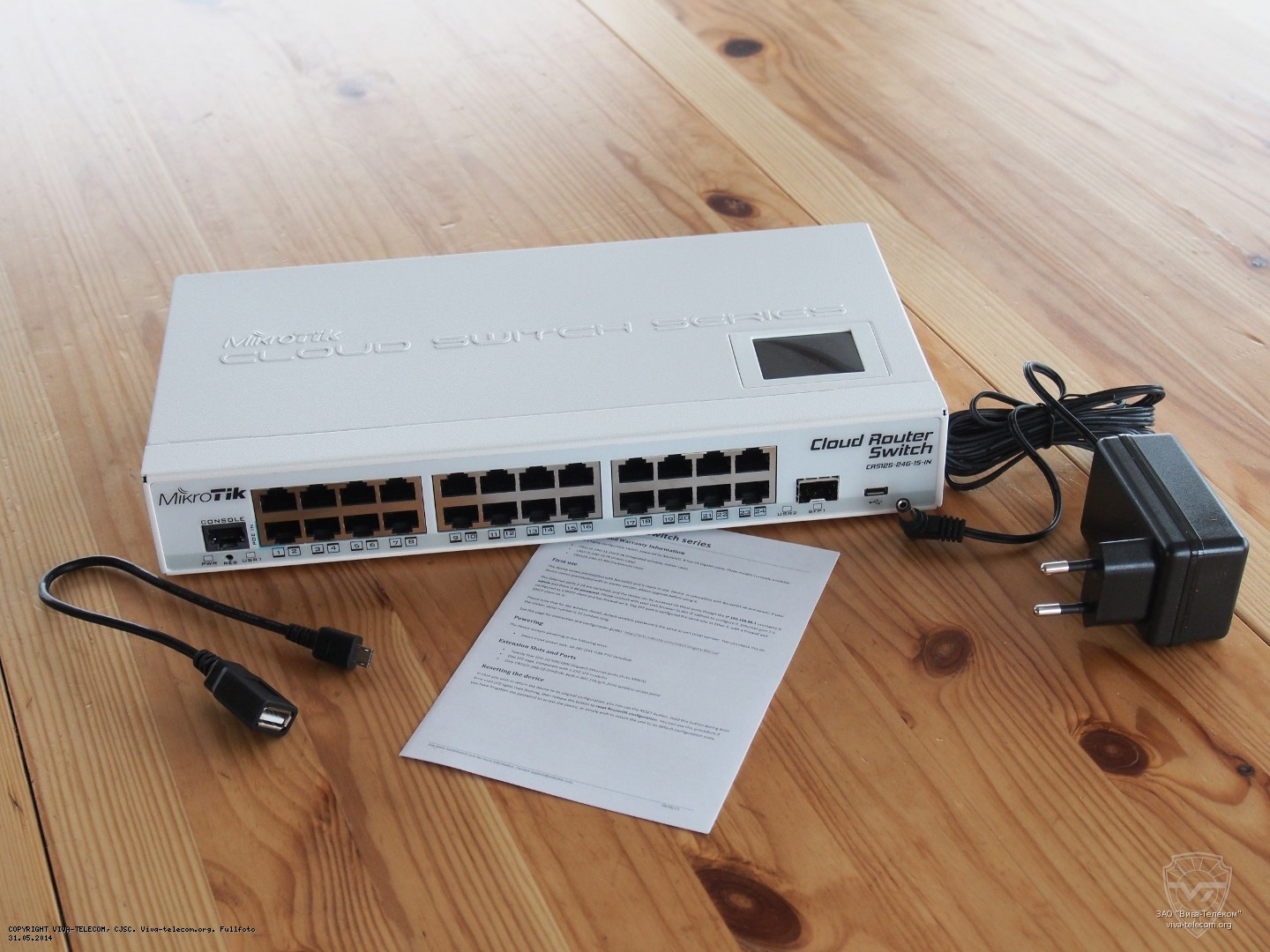

CRS125-24G-1S-IN

CRS125-24G-1S-IN

Thiết bị switch MikroTik CRS125-24G-1S-IN: 24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5.

Mã sản phẩm: CRS125-24G-1S-IN
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Chi tiết

Cloud Router Switch (CRS) là dòng sản phẩm Smart Switch mới của hãng MikroTik. CRS là dòng sản phẩm kết hợp có đầy đủ tính năng của router và switch Layer 3, được trang bị hệ điều hành mạng RouterOS.

Tất cả các tùy chọn cấu hình cho switch nằm ở menu Switch, tuy nhiên, nếu bạn muốn, các cổng có thể được remove khỏi cấu hình switch, và sử dụng như cổng có chức năng định tuyến.

Thiết bị switch MikroTik CRS125-24G-1S-IN là lựa chọn tối ưu cho doanh nghiệp nhỏ, cung cấp router gateway, switch tất cả trong một:
  • Ethernet, Fiber, hoặc 3/4G (với USB modem) làm gateway kết nối Internet.
  • RouterOS gateway/firewall/VPN router với passing cooling.
  • Lên đến 25 cổng kết nối Gigabit (1xSFP và 24xRJ45).
Đặc tả kỹ thuật Thiết bị switch MikroTik CRS125-24G-1S-IN
Product code CRS125-24G-1S-IN
CPU nominal frequency 600 MHz
SFP DDMI Yes
CPU core count 1
Architecture MIPS-BE
Size of RAM 128 MB
10/100/1000 Ethernet ports 24
Wireless chip model AR9344
Number of USB ports 1
Power Jack 1
PoE in Yes
Supported input voltage 8 V - 28 V
Voltage Monitor Yes
PCB temperature monitor Yes
Dimensions 285x145x45mm
Operating System RouterOS
Tested ambient temperature -35C to +65C tested
License level 5
CPU AR9344
Max Power consumption 15W
SFP ports 1
USB slot type microUSB type AB
Serial port RJ45
Storage type NAND
Storage size 128 MB

Kết quả kiểm tra hiệu năng Thiết bị switch MikroTik CRS125-24G-1S-IN
Mode Configuration 64 byte 512 byte 1518 byte
    kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 37,202.4 19,047.6 5,874.1 24,060.2 2,031.9 24,674.9
Switching Non blocking Layer 2 capacity 37,202.4 38,095.2 5,874.1 48,120.3 2,031.9 49,349.8
Switching Non blocking Layer 1 throughput 37,202.4 25,000.0 5,874.1 25,000.0 2,031.9 25,000.0
Switching Non blocking Layer 1 capacity 37,202.4 50,000.0 5,874.1 50,000.0 2,031.9 50,000.0

Mode Configuration 1518 byte 512 byte 64 byte
    kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 81.0 983.7 232.0 950.3 269.6 138.0
Bridging 25 bridge filter rules 81.0 983.7 86.0 352.3 87.6 44.9
Routing none (fast path) 81.0 983.7 210.0 860.2 226.9 116.2
Routing 25 simple queues 81.0 983.7 103.9 425.6 106.6 54.6
Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out
4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
