Switch MikroTik

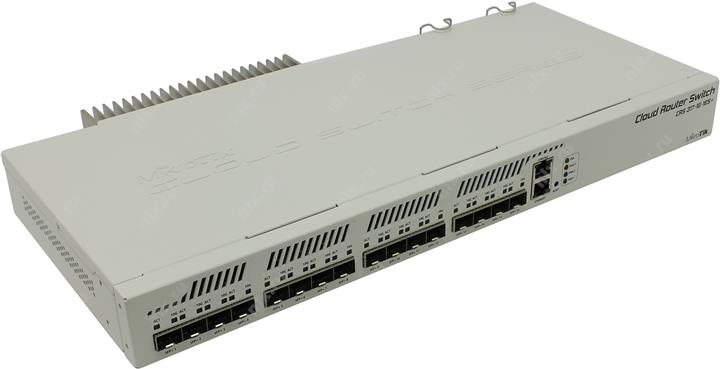

CRS317-1G-16S+RM

Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies

Mã sản phẩm: CRS317-1G-16S+RM
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

MikroTik CRS317-1G-16S+RM is a rack-mountable cloud router switch with layer 3 features, 16 SFP+ ports for 10GbE connectivity, and a 1GbE port for management. It's powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

The unit has dual redundant power supplies and passive cooling case, so it's completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.

Product Features

• Boot option for SwOS or RouterOS

• Non-blocking Layer 2 switching capacity

• 16K host table

• IEEE 802.1Q VLAN

• Supports up to 4K simultaneous VLANs

• Port isolation

• Port security

• Web-based GUI

• 800MHz CPU

• Broadcast storm control

• Port mirroring of ingress/egress traffic

• Rapid Spanning Tree Protocol

• Link Aggregation (LACP)

• Access Control List

• MikroTik neighbor discovery

• SNMP v2/v3

• Rackmount and tabletop

Product Specifications

• CPU: 98DX8216B0 800MHz

• Size of RAM: 1GB

• Storage Type: Flash

• Storage Size: 16MB

• SFP+: 16 (supports both 1.25Gb SFP and 10Gb SFP+ modules; modules not included), DDMI support

• Dimensions: 443 x 224 x 44mm

• License Level: 6

• Operating System: RouterOS or SwitchOS

• Number of AC Inputs: 2

• AC Input Range: 110 to 240V

• Redundant Supply: Yes

• Max Power Consumption: 42W

• Active Case Cooling: Yes

• CPU Temperature Monitor: Yes

• Operating Temperature: -40 to 70°C

• LEDs: 38

• Serial Port: RJ45

Product Includes:

• (1) CRS317-1G-16S+RM

• (2) IEC Cord

• (2) Rackmount Ears
