Trang nhất Sản phẩm Thiết bị mạng Thiết bị mạng Cisco Router Cisco

Router Cisco

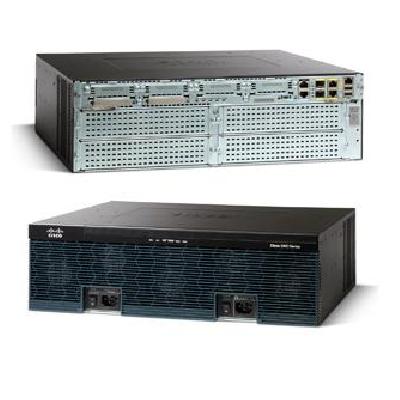

CISCO3945/K9

Thiết bị Router Cisco 3945 w/SPE150 (3GE 4EHWIC 4DSP 4SM 256MBCF 1GBDRAM IPB). / 3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity. / 4 service module slots. / 4 Enhanced High-Speed WAN Interface Card (EHWIC) slots4 onboard digital signal processor (DSP) slots.

Mã sản phẩm: CISCO3945/K9
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

Modular Services Performance Engine (SPE) 100, which can be upgraded for even higher performance as next-generation WAN environments evolve.
3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity.
4 service module slots.
4 Enhanced High-Speed WAN Interface Card (EHWIC) slots4 onboard digital signal processor (DSP) slots.
1 Internal Services Module slot Dual integrated power supplies.
Fully integrated power distribution to modules supporting 802.3af Power over Ethernet.
Embedded hardware-accelerated VPN encryption for secure connectivityIntegrated threat control using Cisco IOS Firewall, Cisco IOS Zone-Based Firewall, Cisco IOS IPS, and Cisco IOS Content Filtering.

**Đặc tả kỹ thuật thiết bị Router CISCO CISCO3945/K9**
Manufacturer	CISCO
Part Number	CISCO3945/K9
Form Factor	Desktop - modular - 3U
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity	Cisco Unified Communications Manager Express sessions : 350
Capacity	Cisco Unified SRST sessions : 1200
Network / Transport Protocol	IPSec, PPPoE, L2TPv3
Routing Protocol	OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol	SNMP, RMON
Encryption Algorithm	SSL
Features	Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards	IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag
DRAM Memory	1 GB (installed) / 2 GB (max)
Flash Memory	256 MB (installed) / 8 GB (max)
LED Status Lights Indicators	Link activity, power
Connectivity Slots
Router Interfaces	3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
	Management : 1 x console - RJ-45
	Management : 1 x console - mini-USB Type B
	Serial : 1 x auxiliary - RJ-45
	Hi-Speed USB : 2 x 4 PIN USB Type A
	2 x SFP (mini-GBIC)
Expansion Slots Total (Free)	4 ( 4 ) x EHWIC
	4 ( 4 ) x PVDM
	2 ( 1 ) x CompactFlash Card
	1 ( 1 ) x Expansion Slot
	4 ( 4 ) x service module (SM)
Power Supply
Power Device	Power supply - internal
Voltage Required	AC 120/230 V ( 47/63 Hz )
System Software
IOS Software Included	CISCO IOS IP Base
