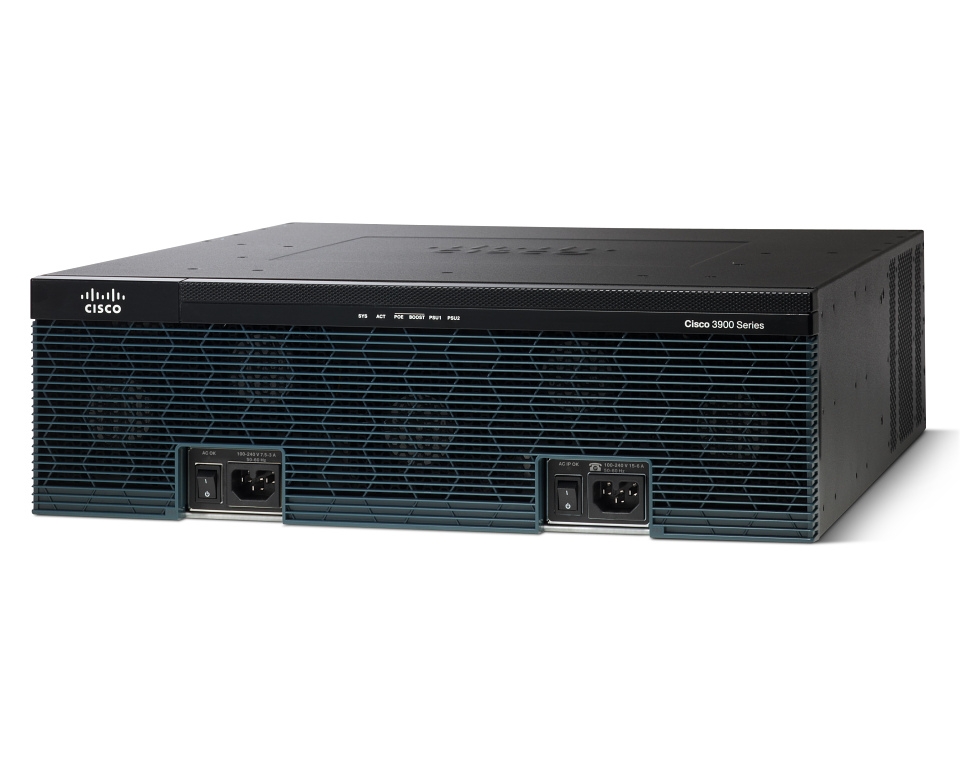

CISCO3925/K9

CISCO3925/K9

Thiết bị router Cisco 3925 Router w/SPE100(3GE,4EHWIC,4DSP,2SM,256MBCF,1GBDRAM,IPB). / 3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity. / 4 Enhanced High-Speed WAN Interface Card (EHWIC) slots.

Mã sản phẩm: CISCO3925/K9
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Chi tiết

  • Modular Services Performance Engine (SPE) 100, which can be upgraded for even higher performance as next-generation WAN environments evolve.
  • 3 integrated 10/100/1000 Ethernet ports with 2 ports capable of RJ-45 or SFP connectivity.
  • 2 service module slots4 Enhanced High-Speed WAN Interface Card (EHWIC) slots.
  • 4 onboard digital signal processor (DSP) slots.
  • 1 Internal Services Module slot Dual integrated power supplies.
  • Embedded hardware-accelerated VPN encryption for secure collaborationIntegrated threat control using Cisco IOS.

Đặt tả kỹ thuật thiết bị ROUTER CISCO CISCO3925/K9
Manufacturer CISCO
Part Number CISCO3925/K9
Product Type Router
Form Factor Desktop - modular - 3U
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity Cisco Unified Communications Manager Express sessions : 250
Cisco Unified SRST sessions : 730
Network / Transport Protocol IPSec, PPPoE, L2TPv3
Routing Protocol OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR)
Remote Management Protocol SNMP, RMON
Encryption Algorithm SSL
Features Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN)
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag
DRAM Memory 1 GB (installed) / 2 GB (max)
Flash Memory 256 MB (installed) / 8 GB (max)
LED Status Lights Indicators Link activity, power
Connectivity Slots
Router Interfaces 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Management : 1 x console - RJ-45
Management : 1 x console - mini-USB Type B
Serial : 1 x auxiliary - RJ-45
Hi-Speed USB : 2 x 4 PIN USB Type A
2 x SFP (mini-GBIC)
Expansion Slots Total (Free) 4 ( 4 ) x EHWIC
4 ( 4 ) x PVDM
2 ( 1 ) x CompactFlash Card
1 ( 1 ) x Expansion Slot
2 ( 2 ) x service module (SM)
Power Supply
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 47/63 Hz )
Dimensions / Weight / Miscellaneous
Width 47.6 cm
Depth 43.8 cm
Height 13.3 cm
Weight 17.7 kg
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, EN50082-1, AS/NZS 60950-1, AS/NZ 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438
System Software
IOS Software Included Cisco IOS IP Base
