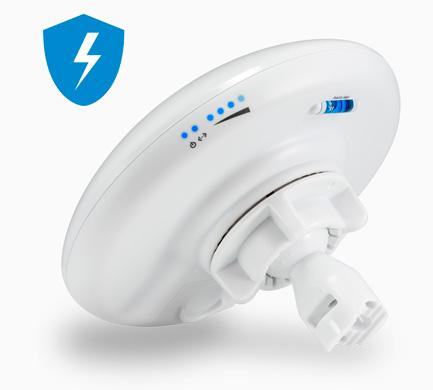

The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

The Ubiquiti NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.



Superior Processing



Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.



Innovative Mechanical Design



• Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.

• Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.

• Easy removal The antenna feed can be detached with the push of a button.

SPECIFICATION

Memory	128 MB DDR2, 8 MB Flash
Operating Frequency	5150 - 5875 MHz Worldwide
Dimensions	189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight	0.530 kg (1.17 lb)
Power Supply (PoE)	24V, 0.5A Gigabit PoE
Interfaces	(1) 10/100/1000 Ethernet Port
Polarization	Dual Linear
Mounting	Pole-Mount (Kit Included), Wall-Mount
Operating Temperature	-40 to 70° C (-40 to 158° F)
