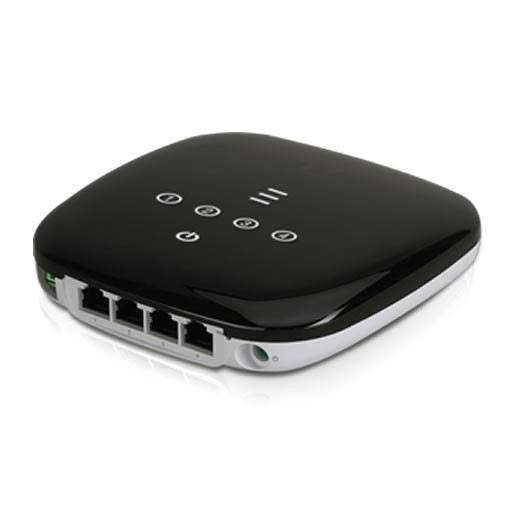

Ubiquiti U Fiber WiFi (UF-WIFI)

GPON Optical Network Unit WAN: (1) GPON Port LAN: (4) Gigabit Ethernet Port Wi-Fi: 300 Mbps GPON Speeds: 2.488 Gbps (RX), 1.244 Gbps (TX)

Mã sản phẩm: UF-WIFI
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

DESCRIPTION

Sporting a sleek industrial design, the U Fiber WiFi is a robust, high‑performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi.

Features:

High-Performance GPON CPE
LED diodes for easy diagnostics
Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
Supports up to 20 km GPON Links
Powerful Layer 2/3 Management Features
GPON WAN Port
4x RJ45 Gigabit LAN Port
SC/APC Fiber Connector
802.11n Wi‑Fi

Status LEDs

The easy-to-read LEDs provide status information: Ethernet connection, signal strength, and power.

Versatile Power

The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.

Designed for Integration

Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.

SPECIFICATION

Memory	256 MB DDR
Dimensions	126.34 x 126.09 x 31.65 mm (4.97 x 4.96 x 1.25")
Weight	190 g (6.70 oz)
Interfaces	(1) SC/APC, GPON WAN, (4) Gigabit RJ45 Ethernet LAN, (1) Wi‑Fi 802.11n
Operating Temperature	-10 to 45° C (14 to 113° F)
Wi-Fi Standards	802.11n
