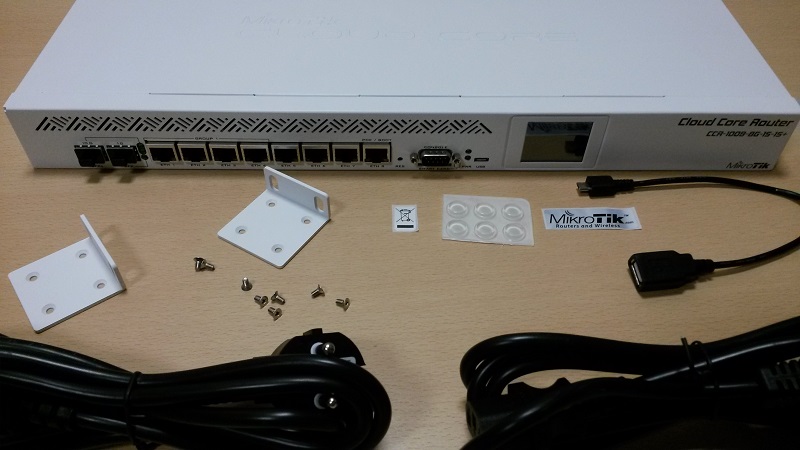

Thiết bị router MikroTik Cloud Core Router CCR1009 là Ethernet router hiệu năng cao xây dựng dựa trên chip vi xử lý 9 core của hãng TILERA.
Thiết bị router MikroTik CCR1009-8G-1S-1S+ trang bị 2GB RAM, 8 cổng Gigabit Ethernet (Ether1-4 thuộc cùng 1 switch group), 1 cổng SFP và 1 cổng SFP+ (không kèm theo SFP module).
Thiết bị router MikroTik CCR1009-8G-1S-1S+ được trang bị 2 nguồn dự phòng cho nhau để tăng tính sẵn sàng cho thiết bị.
Cổng SFP+ cũng có thể gắn module SFP (1.25G).
Mã sản phẩm: CCR1009-8G-1S-1S+
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com
Product code | CCR1009-8G-1S-1S+ |
CPU nominal frequency | 1.2 GHz |
SFP DDMI | Yes |
CPU core count | 9 |
Size of RAM | 2 GB |
Architecture | TILE |
10/100/1000 Ethernet ports | 8 |
Number of USB ports | 1 |
Power Jack | 2 |
PoE in | Yes |
Supported input voltage | 14 V - 57 V |
Voltage Monitor | Yes |
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Dimensions | 444x175x44mm |
Operating System | RouterOS |
Tested ambient temperature | -20C .. +60C |
License level | 6 |
Current Monitor | Yes |
CPU | TLR4-00980CG-10CE |
Max Power consumption | 35W |
SFP ports | 1 |
SFP+ ports | 1 |
USB slot type | microUSB type AB |
Serial port | RS232 + Header |
Storage type | NAND |
Storage size | 128 MB |
CCR1009-8G-1S-1S+ | Tile 9 core all port test with SFP+ | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 974 | 11828.3 | 2817 | 11538.4 | 10491.1 | 5371.4 |
Bridging | 25 bridge filter rules | 974 | 11828.3 | 1390 | 5693.4 | 1447.6 | 741.2 |
Routing | none (fast path) | 974 | 11828.3 | 2817 | 11538.4 | 8217.1 | 4207.2 |
Routing | 25 simple queues | 974 | 11828.3 | 1803 | 7385.1 | 1947.2 | 997 |
Routing | 25 ip filter rules | 680.4 | 8262.8 | 870.1 | 3563.9 | 878.7 | 449.9 |
1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544) | |||||||
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes | |||||||
3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out | |||||||
4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results |
