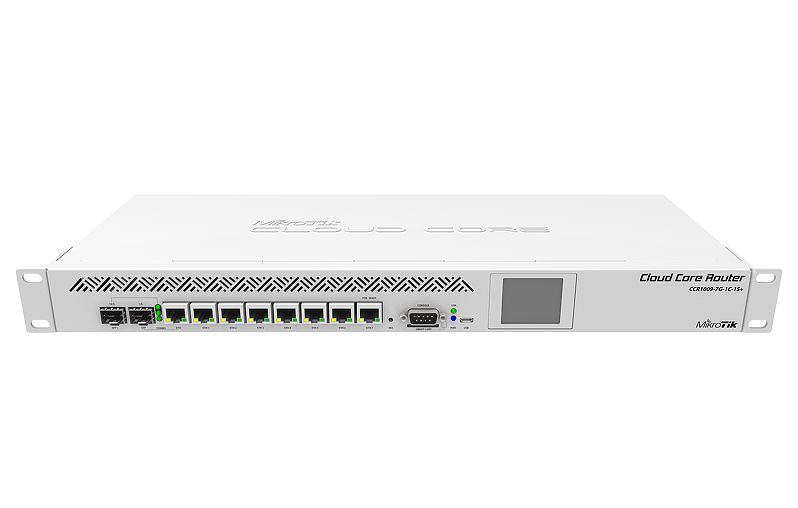

Thiết bị router MikroTik CCR1009-7G-1C-1S+: 1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6. Khuyến dùng cho hệ thống với 800 người dùng Internet đồng thời.
Mã sản phẩm: CCR1009-7G-1C-1S+
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com
Product code | CCR1009-7G-1C-1S+ |
CPU nominal frequency | 1.2 GHz |
CPU core count | 9 |
Size of RAM | 2 GB |
10/100/1000 Ethernet ports | 7 |
Number of USB ports | 1 |
Power Jack | 3 |
Supported input voltage | 15 V - 57 V |
PoE in | Yes |
Voltage Monitor | Yes |
PCB temperature monitor | Yes |
CPU temperature monitor | Yes |
Dimensions | 444x175x47mm |
Operating System | RouterOS |
Tested ambient temperature | -20C to +60C |
License level | 6 |
Current Monitor | Yes |
CPU | TLR4-00980CH-10CE-A3b |
Max Power consumption | 36W |
USB slot type | microUSB type AB |
USB Power Reset | Yes |
Serial port | RS232 + Header |
Storage type | NAND |
Storage size | 128 MB |
CPU Threads count | 9 |
SFP+ ports | 1 |
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 1,300.4 | 15,792.1 | 3,759.4 | 15,398.5 | 17,782.8 | 9,104.8 |
Bridging | 25 bridge filter rules | 1,244.4 | 15,112.0 | 1,395.3 | 5,715.1 | 1,368.1 | 700.5 |
Routing | none (fast path) | 1,300.4 | 15,792.1 | 3,759.4 | 15,398.5 | 17,411.2 | 8,914.5 |
Routing | 25 simple queues | 1,300.4 | 15,792.1 | 1,925.6 | 8,195.4 | 1,977.0 | 1,328.5 |
Routing | 25 ip filter rules | 739.2 | 8,976.8 | 793.9 | 3,378.8 | 801.8 | 538.8 |
1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544) | |||||||
2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes | |||||||
3. Values in Italic indicate that max throughput was reached without maxing out CPU, but because board interface configuration was maxed out | |||||||
4. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results |
