Trang nhất Sản phẩm Ubiquiti EdgeMAX EdgeSwitch

EdgeSwitch

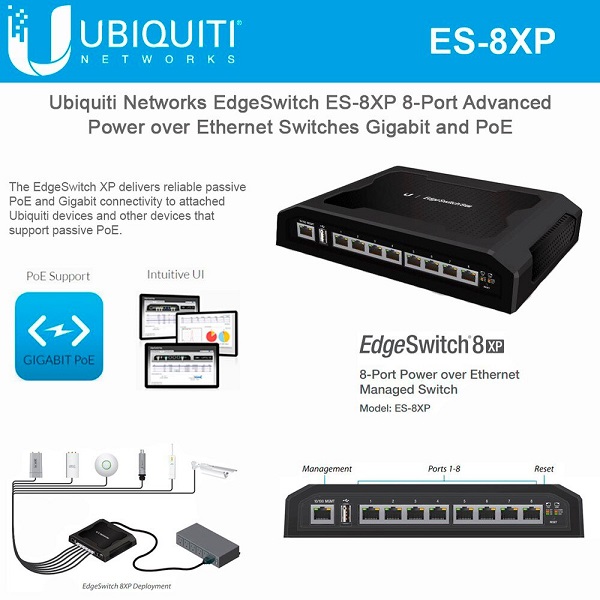

Ubiquiti EdgeSwitch 8XP (ES-8XP)

EdgeSwitch 8XP is an industrialstrength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. 8 Gigabit PoE Ports 24/48V Configurable Passive PoE 150 W Power EdgeSwitch XP Configuration Interface Tough Full Metal and Rubber Casing

Mã sản phẩm: ES-8XP
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

DESCRIPTION

Advanced Gigabit PoE - Managed Switch

Introducing the Advanced Power over Ethernet Switches, EdgeSwitch™ XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.

To connect your PoE devices, simply enable PoE in the easy-touse EdgeSwitch XP Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non‑PoE devices can be connected.

EdgeSwitch XP is available in multiple versions to meet your deployment needs.

EdgeSwitch 8XP is an industrialstrength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices.

Advanced Features:

• Port monitoring

• System connection and management services

• Virtual Local Area Network (VLAN) configuration

• Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)

• Jumbo Frame Support

• Ping Watchdog

• Configurable alerts

SPECIFICATION

Memory	RAM 64 MB Code Storage 8 MB
Dimensions	210 x 185 x 41 mm
Weight	1.24 kg
Interfaces	8 Gigabit PoE Ports 1 Management Port 10/100 USB 2.0 Type A (Reserved for Future Use)
Operating Temperature	-25 to 55°C (-13 to 131° F)
Switch Ports	8 Ports
Switch Type	Managed
