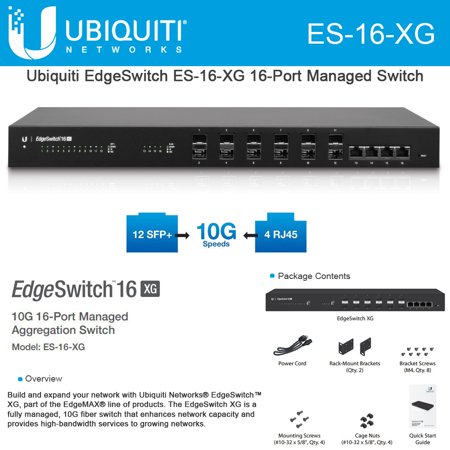

Ubiquiti EdgeSwitch 16 XG (ES-16-XG)

EdgeSwitch 16 XG, Ubiquiti. The EdgeSwitch™ features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.

Mã sản phẩm: ES-16-XG
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

DESCRIPTION

The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch.

For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ45 connectors.

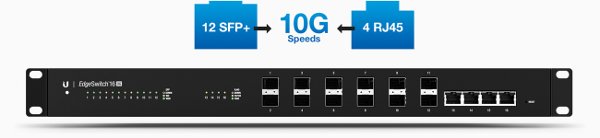

10G High-Capacity Links

The EdgeSwitch™ features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.

Powerful Switching Performance

The EdgeSwitch™ offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non‑blocking throughput, the EdgeSwitch supports up to 160 Gbps.

Advanced Enterprise Switching

The EdgeSwitch™ uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation, and limited layer-3 features, including static routing and DHCP server functionality.

SPECIFICATION

Dimensions	443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
Weight	2.71 kg (5.97 lb)
Interfaces	(12) 1/10 Gbps SFP+ Ethernet Ports (4) 1/10 Gbps RJ45 Ethernet Ports
Operating Temperature	-5 to 40° C (23 to 104° F)
Default IP	192.168.1.2
Default name	ubnt
Default password	ubnt
Switch Ports	16 Ports
Switch Type	Managed
