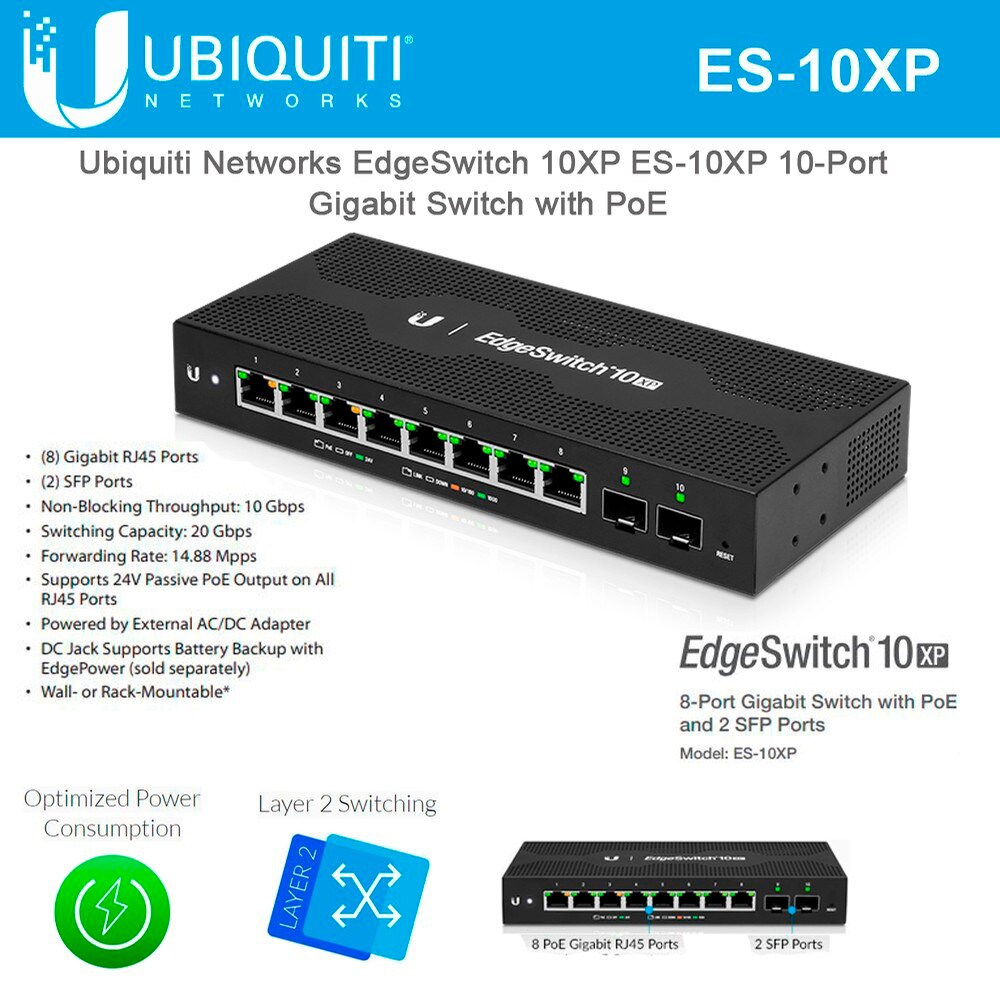

Ubiquiti EdgeSwitch 10XP (ES-10XP)

Ubiquiti EdgeSwitch 10XP 10-Port Switch is a managed PoE switch with SFP ports that is ideal for WISP deployments Total Non-Blocking Throughput: 10Gbps Switching Capacity: 20Gbps Forwarding Rate: 14.88Mpps 8x POE Gigabit RJ45 Ports 2x SFP

Mã sản phẩm: ES-10XP
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

DESCRIPTION

Ubiquiti EdgeSwitch 10XP 10-Port Switch is a managed PoE switch with SFP ports that is ideal for WISP deployments. Eight Gigabit RJ45 ports offer copper connectivity with 24V PoE output, while two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti® Network Management System (UNMS™).

Product Features

· (8) Gigabit RJ45 Ports

· (2) SFP Ports

· Supports 24V Passive PoE Output on All RJ45 Ports

· Powered by External AC/DC Adapter

· Wall- or Rack-Mountable (not included)

SPECIFICATION

Dimensions	207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Interfaces	(8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
Operating Temperature	-10 to 50° C (14 to 122° F)
Switch Ports	8 Ports
Switch Type	Managed
