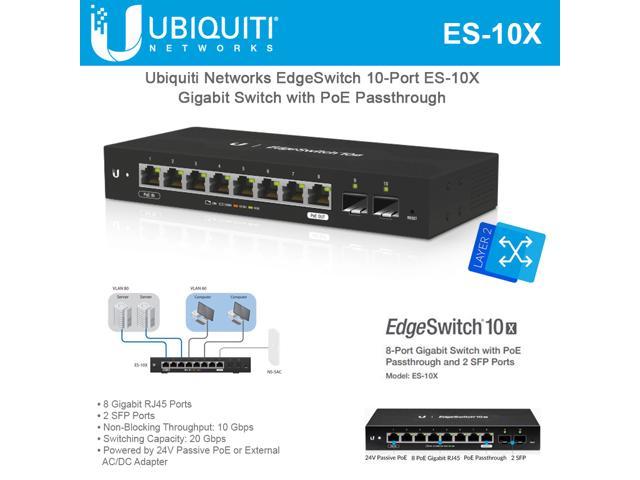

Ubiquiti EdgeSwitch 10X (ES-10X)

Ubiquiti EdgeMax 10-Port EdgeSwitch 10X is Ideal for WISP applications, the EdgeSwitch 10X is our most affordable managed switch with SFP ports. Total Non-Blocking Throughput: 10Gbps Switching Capacity: 20Gbps Forwarding Rate: 14.88Mpps 8x Gigabit RJ45 Ports 2x SFP

Mã sản phẩm: ES-10X
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

DESCRIPTION

Ubiquiti EdgeMax 10-Port EdgeSwitch 10X is Ideal for WISP applications, the EdgeSwitch 10X is our most affordable managed switch with SFP ports. Eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and PoE passthrough on port 8. Two SFP ports offer fiber connectivity. The browser-based configuration interface offers intuitive control using a redesigned UI. Management is also available through the Ubiquiti Network Management System (UNMS).

Product Features

· (8) Gigabit RJ45 Ports

· (2) SFP Ports

· Support PoE Passthrough on Port 8 (software-selectable)

· Powered by 24V Passive PoE or External AC/DC Adapter

· Wall- or Rack-Mountable (sold separately)

SPECIFICATION

Dimensions	207 x 31.1 x 90 mm (8.15 x 1.22 x 3.54")
Interfaces	(8) 10/100/1000 Mbps RJ45 Ports (2) 1 Gbps SFP Ports
Operating Temperature	-10 to 50° C (14 to 122° F)
Switch Ports	8 Ports
Switch Type	Managed
