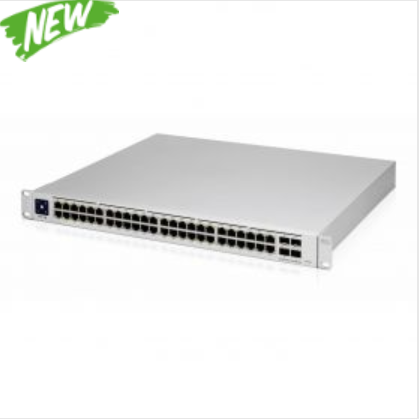

Ubiquiti UniFi Switch USW-Pro-48-POE Gen2

The USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ports, four SFP+ ports.

Mã sản phẩm: USW-Pro-48-POE
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

DESCRIPTION

The USW-Pro-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. Near-silent cooling and a 1.3" touch LCM.

Note: Layer3 will be included in later software release.

SPECIFICATION

PoE Output	PoE+ IEEE 802.3af/at
PoE output Voltage	802.3af 44-57V
Max. PoE Wattage per Port	802.3at 32W
Operating Humidity	10 - 90% Noncondensing
Power Supply	AC/DC, Internal, 660W
Total Non-Blocking Throughput	88 Gbps
Management Interface	Ethernet In-Band
Tested ambient temperature	-5°C to 40°C

POWERING

Power Method	Universal Input: 100-240VAC, 50/60 Hz USP RPS DC Input: 52VDC, 11.54A; 11.5VDC, 5.22A
Number of PoE-out ports	48
Supported Input Voltage Range	100 to 240VAC
Max power consumption without attachments	60W

ETHERNET

Switching Capacity	176 Gbps
Forwarding Rate	130.944 Mpps
10/100/1000 Ethernet ports	48
SFP+ ports	4
