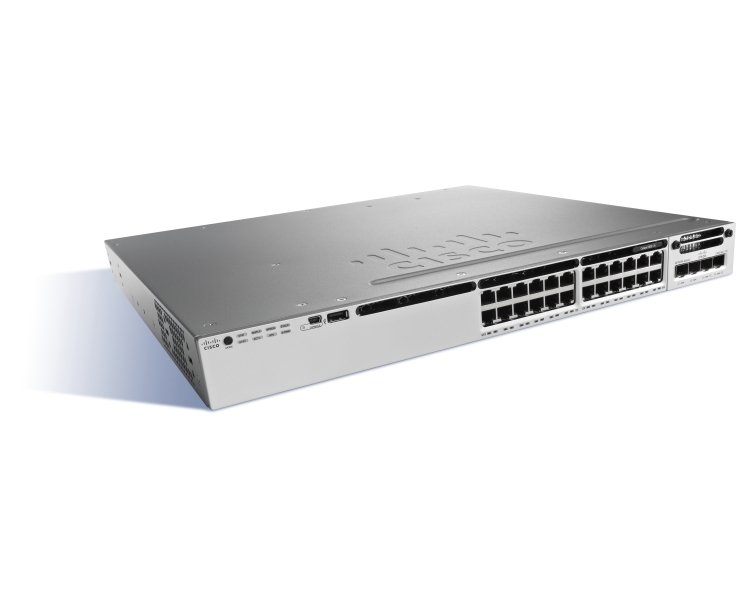

WS-C3850-24T-L

WS-C3850-24T-L

Thiết bị switch Cisco Catalyst 3850 24 Port LAN Base / 24 * 10/100/1000 Ethernet ports / Up to 20G wireless bandwidth per switch / Up to 9 members stacking and up to 480Gbps of stack throughput / Up to 40G wireless bandwidth per switch.

Mã sản phẩm: WS-C3850-24T-L
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Chi tiết

  • 24 * 10/100/1000 Ethernet ports with no POE capacity.
  • Network SFP uplink module: C3850-NM-4-1G OR C3850-NM-2-10G.
  • Dual redundant power module and three modular fans.
  • LAN Base IOS image with upgrade option to IP Service (L-C3850-24-L-E) or IP Base (L-C3850-24-L-S).
  • Up to 20G wireless bandwidth per switch.
  • Layer 2 switching capability disables IP routing and Flexible Netflow features.
  • Up to 9 members stacking and up to 480Gbps of stack throughput.
  • Up to 40G wireless bandwidth per switch.
  • IP base image license required for wireless controller functionality.
  • 4GB memory (DRAM) and 2GB flash.
Đặc tả kỹ thuật thiết bị switch Cisco WS-C3850-24T-L Catalyst 3850 Switch
Cisco catalyst 3850-24T-L
P/N WS-C3850-24T-L
Form Rack-mountable - 1U
Ports 24 x 10/100/1000
Network management Interface Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Switching Capacity 92Gbps
Maximum stacking number 9
Stack Bandwidth 480Gbps
Forwarding Performance 68.4Mpps
FNF entries disabled (IP base license required)
Maximum VLANs IDs 255
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 50
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules C3850-NM-4-1G: 4 x 1G uplinks network module
C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable STACK-T1-50CM StackWise stacking cable with a 0.5 m length
STACK-T1-1M StackWise stacking cable with a 1.0 m length
STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) CAB-SPWR-30CM stack power cable with a 30CM length
CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-350WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
