Cisco Catalyst 3650 Series

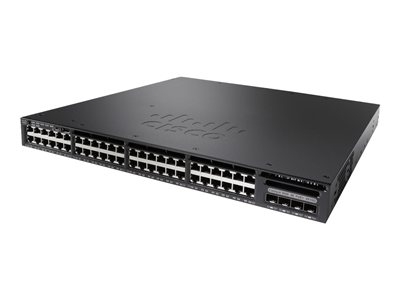

WS-C3650-48TS-L

Thiết bị switch CISCO Catalyst 3650 48 Port Data 4x1G Uplink LAN Base. Layer 2 switching with limited static routing features. / LAN Base IOS image with upgrading to IP service (L-C3650-48-L-E) or IP base (L-C3650-48-L-S).

Mã sản phẩm: WS-C3650-48TS-L
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

48 x 10/100/1000 POE+ Ethernet ports with 4 x 1G SFP uplinks.
Layer 2 switching with limited static routing features.
LAN Base IOS image with upgrading to IP service (L-C3650-48-L-E) or IP base (L-C3650-48-L-S).
Up to 40G wireless bandwidth per switch.
Up to 9 members stacking and up to 160Gbps of stack throughput.
4GB memory (DRAM) and 2GB flash.
Dual redundant power supplies and fans redundant modular.

Đặc tả kỹ thuật thiết bị switch CISCO 3650 WS-C3650-48TS-L
Cisco catalyst 3650-48TS-L
Part number	WS-C3650-48TS-L
Form	Rack-mountable - 1U
Ports	48 x 10/100/1000 + 4 x 1G SFP
Network management Interface	Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Network management Interface	Management console port: RJ-45-to-DB9 cable for PC connections
Switching Capacity	176Gbps
Maximum stacking number	9
Stack Bandwidth	160Gbps
Forwarding Performance	77.37Mpps
FNF entries	disabled (IP base license required)
Maximum VLANs IDs	255
MAC Address Table Size	32K
CPU	Multicore CPU
RAM	4 G
Flash Memory	2 G
Wireless
Number of AP per switch/stack	25
Number of wireless clients per switch/stack	1000
Total number of WLANs per switch	64
Wireless bandwidth per switch	up to 40Gbps
Supported Aironet AP series	3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040 (IP base license required)
Expansion / Connectivity
Console ports	USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)	power redundant slot
Accessory & Rack Moubt Kits	ACC-KIT-T1: Accessory kit
	RACK-KIT-T1: Rack mount kit
	4PT-KIT-T1:Extension rails and brackets for four-point mounting
Stacking module & cable	C3650-STACK-KIT: Stack Module
	STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
	STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
	STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply	PWR-C2-250WAC
Power Device	Power supply - redundant - plug-in module
Power Redundancy	optional
System software / license
System software	CISCO IOS LAN Base (Upgradable)
EnergyWise license	ENERGY-MGMT, ENERGY-MGT-100-K9
Software license	C3650-48-L-S : LAN Base to IP Base RTU paper license
	C3650-48-L-E: LAN Base to IP Services RTU paper license
	L-C3650-48-L-S: LAN Base to IP Base RTU electronic license
	L-C3650-48-L-E: LAN Base to IP Services RTU electronic license
Access Point Licenses	L-LIC-CT3650-UPG: Primary upgrade license SKU for Cisco 3650 wireless controller (e-delivery)
	L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
	L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
	LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
