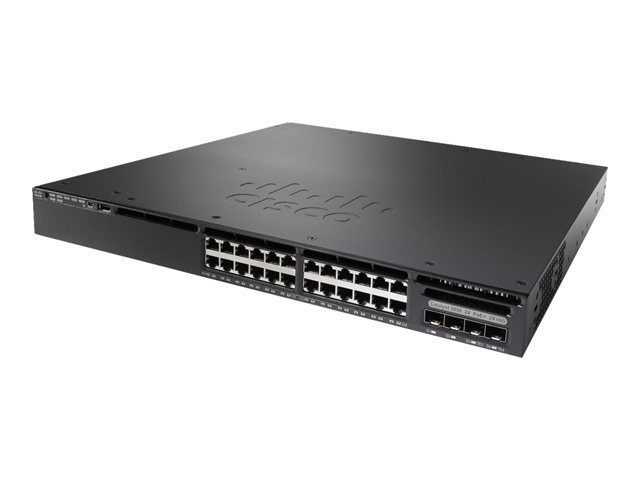

WS-C3650-24PWS-S

WS-C3650-24PWS-S

Thiết bị switch CISCO Catalyst 3650 24*10/100/1000 Ethernet Ports PoE - 4*1G Uplink w/5 AP licenses - wireless controller - Layer 3 switching - IP Base IOS - Managed

Mã sản phẩm: WS-C3650-24PWS-S
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Chi tiết

  • 24 x 10/100/1000 Ethernet POE+ ports with fixed 4 * 1G SFP uplinks.
  • 90W POE power budget with up to 30W per port.
  • IP base image with update option to IP service (L-C3650-24-S-E).
  • Include 5 access point licenses supporting up to 200 wireless connections.
  • Layer 3 routing features: OSPF stub, EIGRP stub, RIPv1, v2, PIM stub.
  • Up to 20G wireless bandwidth per switch, up to 25 APs and 1000 Wireless clients for each switching entity.
  • Support Cisco Aironet 1040/1140/1260/1600/2600/3500/3600/3700 series APs.
  • Up to 9 members stacking and up to 160Gbps of stack throughput.
  • Power redundant and fans redundant modular option.
  • 4GB memory (DRAM) and 2GB flash.
Đặc tả kỹ thuật thiết bị switch CISCO 3650 WS-C3650-24PWS-S
Cisco catalyst 3650-24PWS-S
Part number WS-C3650-24PWS-S
Form Rack-mountable - 1U
Ports 24 x 10/100/1000 (POE+) + 4 x 1G SFP
Network management Interface Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power 390w
Switching Capacity 88Gbps
Maximum stacking number 9
Stack Bandwidth 160Gbps
Forwarding Performance 41.66Mpps
FNF entries 24000
Maximum VLANs IDs 4094
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 25
Number of wireless clients per switch/stack 1000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3700, 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)  power redundant slot
Accessory & Rack Moubt Kits ACC-KIT-T1: Accessory kit
RACK-KIT-T1: Rack mount kit
4PT-KIT-T1:Extension rails and brackets for four-point mounting
Stacking module & cable C3650-STACK-KIT: Stack Module
STACK-T2-50CM: StackWise-160 stacking cable with a 0.5 m length
STACK-T2-1M: StackWise-160 stacking cable with a 1.0 m length
STACK-T2-3M: StackWise-160 stacking cable with a 3.0 m length
Power supply PWR-C2-640WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone (in Watts) 65.9 (max)
System software / license
System software CISCO IOS IP Base (Upgradable)
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Software license C3650-24-S-E: IP Base to IP Services RTU paper license
L-C3650-24-S-E: IP Base to IP Services RTU electronic license
Access Point Licenses 5 Access Point licenses
