Catalyst 3560- 3750X series

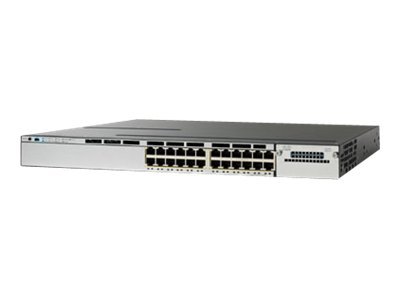

WS-C3750X-24T-S

Thiết bị switch CISCO Catalyst 3750X-24T Switch Layer 3 - 24 x 10/100/1000 Ethernet Ports - Data IP Base - Managed - Stackable

Mã sản phẩm: WS-C3750X-24T-S
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com

Cuộn tới
Sản phẩm cùng loại

Chi tiết

Đặc tả kỹ thuật **thiết bị switch CISCO** WS-C3750X-24T-S
Manufacturer	Cisco
Manufacturer Part Number	WS-C3750X-24T-S Catalyst 3750-X Switch
Product Type	Managed, Stackable 24 ports L3 Switch
Form Factor	Fixed, Rack Mountable 1U, Stackable/Clustering
Switch Port density - Uplinks	24 x 10/100/1000 Ethernet Ports
Max Number of Stacks	9
Routing Protocol	RIP-1, RIP-2, HSRP, static IP routing, RIPng
DRAM Memory	256 MB
Flash Memory	128 MB Flash
LED Status Lights Indicators	Port status, link activity, port transmission speed, port duplex mode, power, system
Connectivity / Expansion Slots
Interfaces	24 x 10Base-T/100Base-TX/1000Base-T - RJ-45
	USB : 1 x 4 PIN USB Type A
	1 x console - mini-USB Type B - management
	1 x RS-232 - RJ-45 - management
	1 x 10Base-T/100Base-TX - RJ-45 - management
	Network stack device : 2 x
Expansion Slot(s)	1 (total) / 1 (free) x Expansion Slot
Power Supply Specifications
Power Device	Power supply - redundant - plug-in module
Installed Qty	1 (installed) / 2 (max)
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Voltage Required	AC 120/230 V ( 50/60 Hz )
Features	Redundant Power System (RPS) connector
System Software
Software Included	CISCO IP Base
