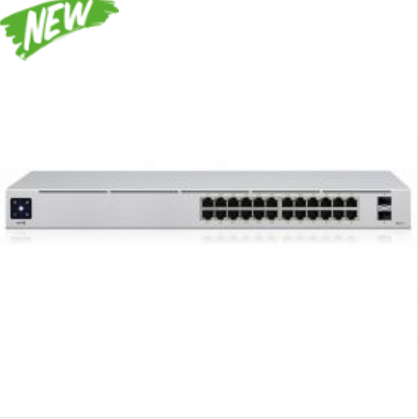

The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.



Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

SPECIFICATION

PoE Output	PoE+ IEEE 802.3af/at
Max. PoE Wattage per Port	32W
Operating Humidity	10 - 90% Noncondensing
Power Supply	AC/DC, Internal, 120W
Total Non-Blocking Throughput	26 Gbps
Management Interface	Ethernet In-Band
Tested ambient temperature	-5°C to 40°C
