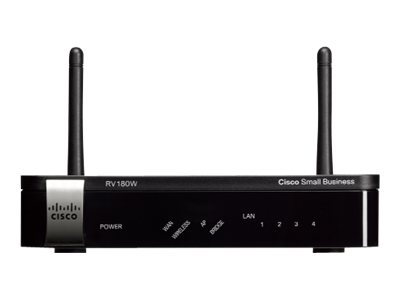

- Thiết bị access point Cisco RV180W Wireless-N VPN Firewall là thiết bị router wifi phù hợp cho các văn phòng, chi nhánh công ty.
- 4 Gigabit ethernet kết nối thiết bị yêu cầu băng thông lớn. Chuẩn kết nối wifi 802.11n
- Hỗ trợ 10 VPN IP Security (IPsec), Site-to-Site Tunneling và Point-to-Point Tunneling Protocol (PPTP).
- Mã sản phẩm: RV180W-E-G5-K9
Mã sản phẩm: RV180W-E-G5-K9
Đơn giá: Vui lòng liên hệ
Điện thoại: (028) 38682371
Hotline: 0917 39 7766
Email: info@switch-router.com
| Specifications | Description |
| Standards | IEEE 802.11n, 802.11g, 802.11b, 802.3, 802.3u, 802.1D, 802.1p, 802.11e, 802.11w (Rapid Spanning Tree) 802.1X (security authentication), 802.1Q (VLAN), 802.11i (Wi-Fi Protected Access [WPA2] security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723) |
| Ports | LAN, WAN |
| Switch | Power button (on/off) |
| Buttons | Reset |
| Cabling Type | Category 5e or better |
| LEDs | Power, WPS, WAN, wireless, LAN (ports 1–4), Additional LEDs for multifunction router, access point, bridge on RV180W |
| Operating System | Linux |
| Network | |
| Network Protocols | ● Dynamic Host Configuration Protocol (DHCP) server ● Point-to-Point Protocol over Ethernet (PPPoE) ● Point-to-Point Tunneling Protocol (PPTP) ● Layer 2 Tunneling Protocol (L2TP) ● DNS proxy ● DHCP relay agent ● IGMP proxy and multicast forwarding ● Rapid Spanning Tree Protocol (RSTP) ● Network Address Translation (NAT), Port Address Translation (PAT) ● One-to-One NAT ● Port management ● Software configurable DMZ to any LAN IP address ● Session Initiation Protocol (SIP) Application Layer Gateways (ALG) |
| LAN | ● Four (4) 10/100/1000 Mbps Gigabit LAN ports with managed switch |
| WAN | ● One (1) 10/100/1000 Mbps Gigabit WAN port |
| WLAN | ● Built-in high-speed 802.11n wireless access point |
| Routing Protocols | ● Static routing ● Dynamic routing ● RIP v1 and v2 ● Inter-VLAN routing |
| Network Address Translation (NAT) | Port Address Translation (PAT), Network Address Port Translation (NAPT) protocol |
| VLAN Support | Port-based and 802.1Q tag-based VLANs |
| Number of VLANs | 4 active VLANs (3-4096 range) |
| IPv6 | ● Dual-stack IPv4 and IPv6 ● 6to4 tunneling ● Multicast Listener Discovery (MLD) for IPv6 (RFC2710) ● Stateless address auto-configuration ● DHCPv6 Server for IPv6 Clients on LAN ● DHCP v6 client for WAN connectivity ● Internet Control Message Protocol (ICMP) v6 ● Static IPv6 Routing ● Dynamic IPv6 Routing with RIPng |
| Network Edge (DMZ) | Software configurable to any LAN IP address |
| Layer 2 | 802.1Q-based VLANS, 4 active VLANS |
| Security | |
| Firewall | Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ DoS Attacks Prevented: SYN Flood Detect Rate (max/sec) Echo Storm (ping pkts/sec) ICMP Flood (ICMP pkts/sec) Block UDP Flood Block TCP Flood Block Java, Cookies, Active-C, HTTP Proxy |
| Access Control | IP access control lists; MAC-based wireless access control |
| Content Filtering | Static URL blocking or keyword blocking |
| Secure Management | HTTPS, username/password complexity |
| WPS | Wi-Fi Protected Setup |
| Certificate Management | Self-signed SSL certificate, import/export certificate using Privacy-Enhanced Mail (PEM) format |
| User Privileges | 2 levels of access: admin and guest |
| VPN | |
| IPsec VPN | 10 gateway-to-gateway IPSec tunnels |
| QuickVPN | 10 Quick VPN tunnels using Cisco QuickVPN client |
| PPTP VPN | 10 PPTP tunnels for remote client access |
| Encryption | Triple Data Encryption Standard (3DES) |
| Authentication | MD5/SHA1 |
| VPN Pass-through | IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through |
| Quality of Service | |
| QoS | ● 802.1p port-based priority on LAN port, application-based priority on WAN port ● 4 queues ● Differentiated Services Code Point support (DSCP) ● Class of Service (CoS) ● Bandwidth Management for service prioritization |
| Jumbo Frame | Supports Jumbo Frame on Gigabit ports – at least 1536B |
| Performance | |
| NAT Throughput | 800 Mbps |
| Concurrent Sessions | 12,000 |
| IPsec VPN Throughput | 50 Mbps |
| Configuration | |
| Web User Interface | Simple, browser-based configuration (HTTP/HTTPS) |
| Management | |
| Management Protocols | Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP) |
| Event Logging | Local, syslog, email alerts |
| Network Diagnostics | Ping, Traceroute, and DNS Lookup |
| Upgradability | Firmware upgradable through web browser, imported/exported configuration file |
| System Time | Supports NTP, Day Light Savings, Manual entry |
| Languages | GUI supports English, French, Italian, German, Spanish, and Japanese |
| Wireless | |
| Radio and modulation type | 802.11b: direct sequence spread spectrum (DSSS), 802.11g: orthogonal frequency division multiplexing (OFDM), 802.11n: OFDM |
| WLAN | 2.4GHz IEEE 802.11n standard-based access point with 802.11b/g compatibility |
| Operating channels | 11 North America, 13 most of Europe, auto channels selection |
| Wireless isolation | Wireless isolation between clients |
| External antennas | 2 fixed antennas |
| Antenna gain in dBi | 1.8 dBi |
| Transmit power | 802.11b: 17 dBm +/- 1.5 dBm; 802.11g: 15 dBm +/- 1.5 dBm; 802.11n: 12.5 dBm +/- 1.5 dBm |
| Receiver sensitivity | -87 dBm at 11 Mbps, -71 dBm at 54 Mbps, -68 dBm at mcs15, HT20, -66 dBm at mcs15, HT40 |
| Radio Frequency | Single-band, works on 2.4GHz |
| Wireless Domain Service (WDS) | Allows wireless signals to be repeated by up to 3 compatible devices |
| Operating Modes | Multifunction device-wireless router, access point mode with WDS, Point-to-Point Bridge mode with WDS, Point-Multi Point Bridge mode with WDS, Repeater mode with WDS |
| Active WLAN clients | Recommended 10 concurrent client (max 16) in wireless router mode; and 20 concurrent client (max32) in wireless Access Point mode |
| Multiple SSIDs | Supports multiple Service Set Identifiers (SSIDs), up to 4 separate virtual networks |
| Wireless VLAN map | Supports SSID to VLAN mapping with wireless client isolation |
| WLAN security | Wired Equivalent Privacy (WEP), WPA, WPA2-PSK, WPA2-ENT, 802.11i |
| Wi-Fi Multimedia (WMM) | WMM with QoS (802.1e), WMM power save (WMM-PS) |
